When the external hard disk becomes unallocated space, you can use the 5 easy methods for hard disk unallocated repair in Windows 11, 10, 8, 7 on your own. You will know the causes and how to fix unallocated hard drive without losing data in this passage.
"Help me! I have my Seagate external hard disk drive 500GB and it is full of files and movies. It was working perfectly well yesterday. However, today suddenly became an “unallocated” drive without even a drive name. I'm able to detect the drive in the Disk Management but I have no way of accessing it. Anyone can share some effective solution to hard disk unallocated repair? Thanks in advance!"
-Extracted from seven forums
It's common for a new PC's internal or external hard drive to be unallocated when it comes straight from the factory. This means that the drive doesn't have a drive letter assigned to it or isn't part of any partition, so it can't store files or programs.
However, a hard disk becoming unallocated can suddenly happen even after you have used it for a period of time, either as a partition or the whole drive. When this happens, standard file storage is no longer possible, which means the external hard drive can't be accessed on a Windows system and there is a high risk of losing data. Because of this, this situation is still a significant concern for computer users.
Some suggest that users format the hard drive; however, most people still want to preserve the important data on it. If you want to safely fix an unallocated hard drive, you can follow the 5 methods described in this passage.
Are you facing the same issue like the internal or external hard drive becoming unallocated in the PC? When trying to use the drives, it shows as unallocated suddenly for no reason. Consequently, the data are there, but you cannot access them. Before attempting to fix it, we need to figure out what makes a hard disk showing unallocated first. There are many reasons that can cause this issue and they include:
According to the possible reasons for which the hard disk shows an unallocated listed above, here we offer a detailed guide to help you with hard disk unallocated repair in Windows 11/10/8/7. Before that, you can download and run the anti-virus software to clean up possible viruses in PC and external hard drive. If lucky, the problem will get fixed. If not, you can check out the following technical methods.
Way 2. Check and fix hard disk internal error or file system error
Way 3. Recover the unallocated space via partition recovery software
Way 4. Repair unallocated disk space by creating a new partition

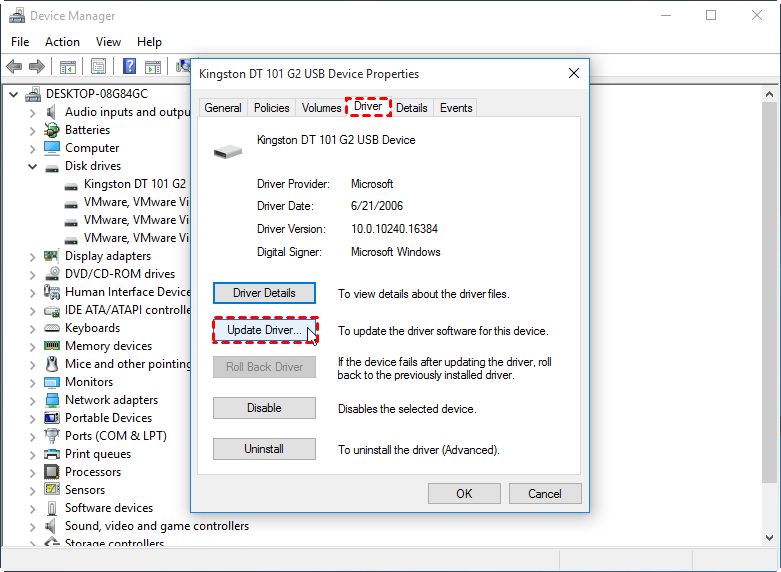

1. Get to Device Manager by clicking on "Start" and typing in "devmgmt.msc" or by going to Control Panel and clicking on "Device Manager".
2. Right-click on the target disk under Disk drive, click on "Properties", then the Driver tab and then click "Update Driver".
If this doesn’t work, you can also try to download the driver for your device from the manufacturer’s website.
To check and fix hard disk internal error or file system error, you can try the following two methods.
A. Run CHKDSK
First of all, press Win+R at the same time to open Run, input “cmd” and hit Enter (be sure to run it as an administrator). Then type "chkdsk g: /f /r /x".
● g: refers to the drive letter of the drive that you need to check ● /f fixes the errors found in the F partition/volume. ● /r locates the bad sectors on the drive and recovers readable data. But some data cannot be recovered with /r. So it is important to develop a habit of making schedule backups. ● /x forces the drive to dismount before the process starts.
B. Check and fix the hard drive error via AOMEI Partition Assistant
If you are not familiar with such complex commands and fear of errors like checking hard drive but computer no longer works, you can turn to a third-party tool. AOMEI Partition Assistant is highly recommended. It can run on Windows 11/10/8/7. With a user-friendly interface, this software is quite easy to use for both computer experts and novices. To check and fix the hard disk error via AOMEI Partition Assistant, do as follow:
The Best Windows Disk Partition Manager and PC Optimizer
1. Download the freeware. Install and launch it. Right-click the drive partition you need to check, and select Check Partition under Advanced.
2. Choose check partition and fix the error in this partition by using chkdsk.exe or the other two options based on your needs. Then click on OK, and wait until completed.
Bonus tip: you can also right-click the disk which shows as unallocated space, and choose Surface Test to check whether there is bad sectors on the hard drive.
When your hard disk partition is deleted by accident, it will become an unallocated space, too. you can also run the software, which can recover deleted partitions within simple steps. Of course, the inside data will also be back as long as you don’t overwrite any data onto it after the unallocated space issue.
1. Install and launch AOMEI Partition Assistant Professional. Click on Recover > Partition Recovery.
2. Then select the disk that shows unallocated space and click Next.

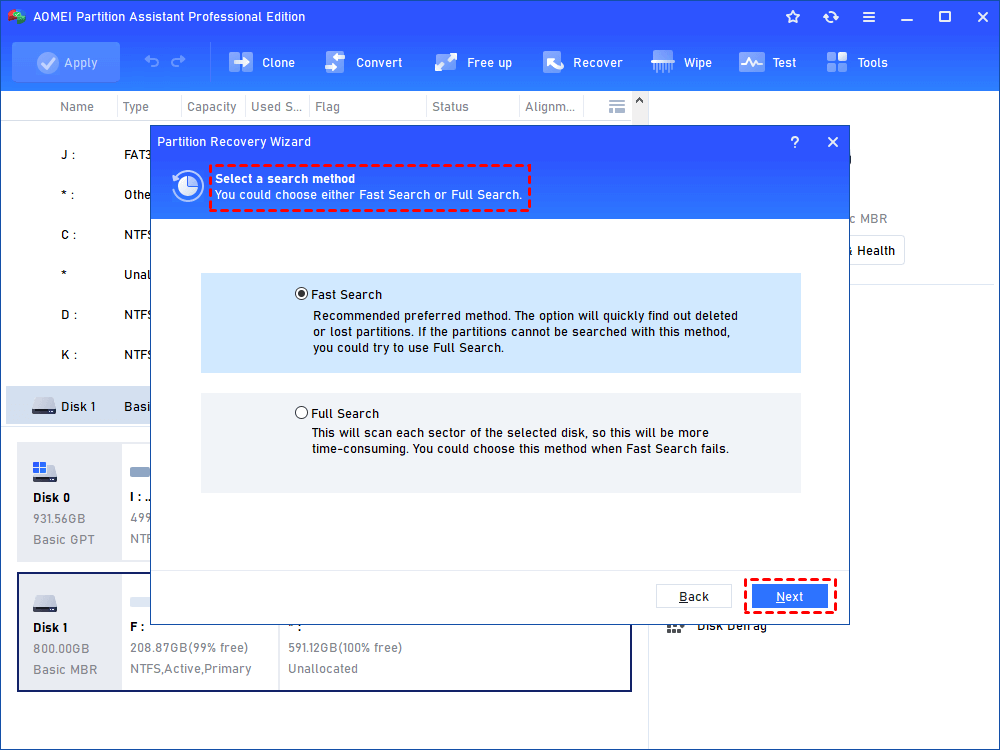

3. In this window, choose a way to search the lost partition. Here we choose the first one. And click Next.

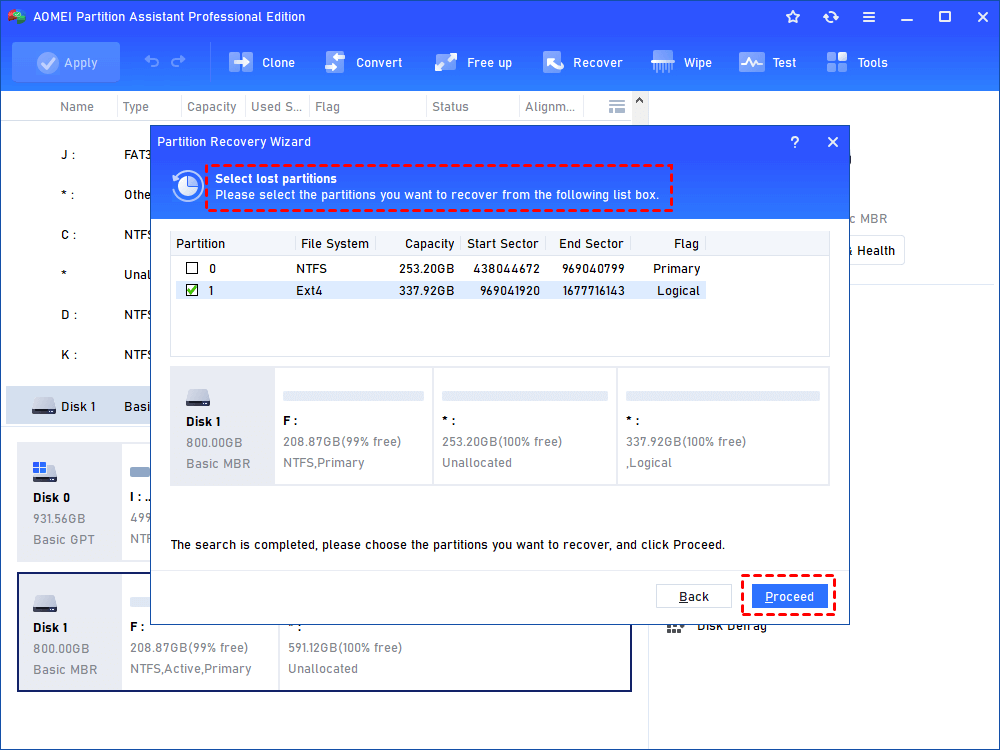

4. Now, tick the lost partition you want to recover and click on Proceed.

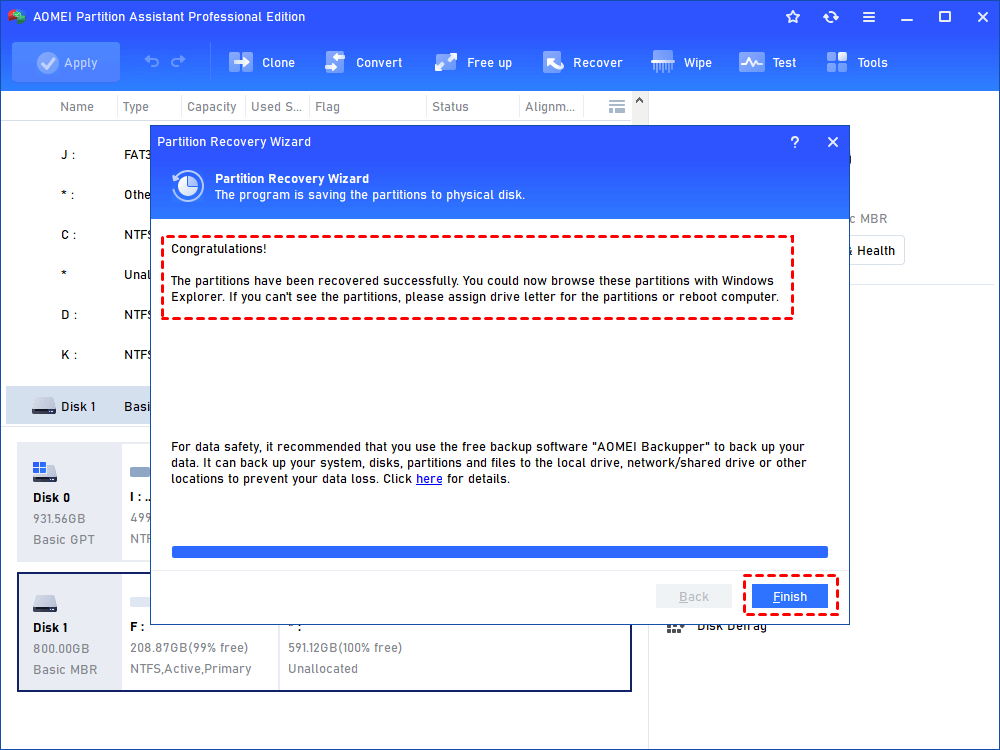

5. When the lost partition has been recovered, click Finish.
Then, you can find the unallocated space will turn into a partition and the inside data can also be accessed.
If none of the above hard disk unallocated repair methods work, you can directly create a partition on the unallocated space again. But that will erase all data on the disk, so it is necessary to recover the data from unallocated hard drive using a reliable recovery tool first. Then you can use the above partition manager to create a new partition.

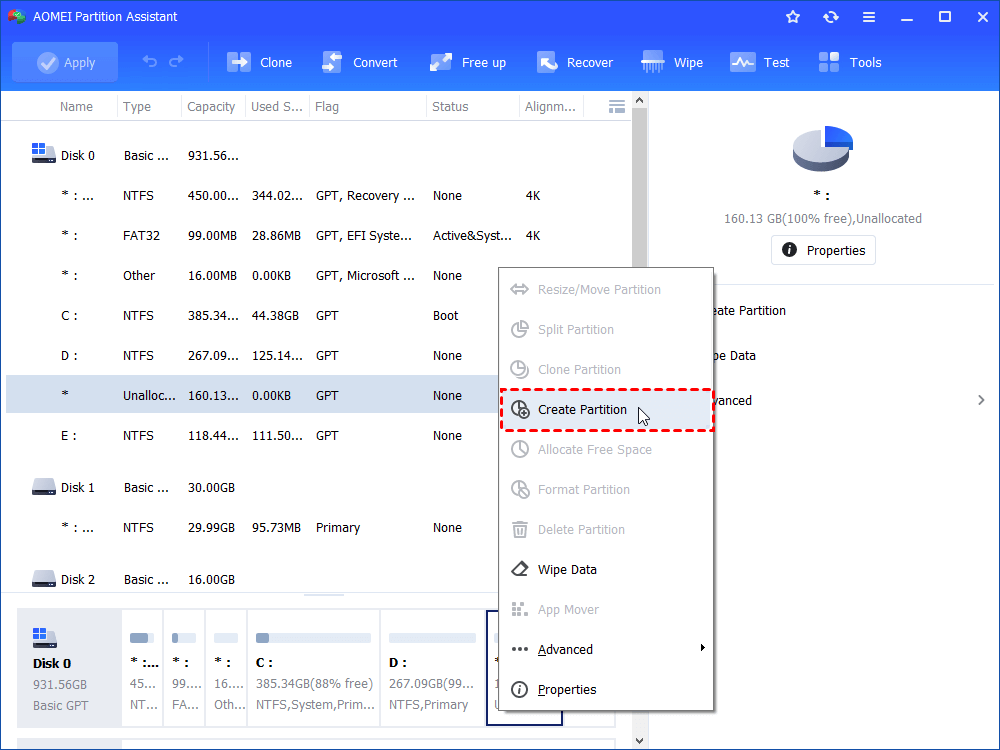

1. Run AOMEI Partition Assistant, right-click the unallocated space on the hard drive and select Create Partition.
2. Set the drive letter, size and file system of the hard drive as you wish and click OK.
3. Back to the main interface, click Apply to commit the operation.
Or you can merge this unallocated space into another partition through the "Merge Partitions" function.
Sometimes the volume may need to be manually deleted. AOMEI Partition Assistant Standard can also help you.
Step 1. Launch AOMEI Partition Assistant. In the main interface, right-click the partition, and choose “Delete Partition”.
Step 2. In the pop-up window, choose “Delete partition quickly without wiping data” or “Delete partition and wipe data on it”. Then, click “OK”.
Step 3. Click “Apply” and “Proceed” to confirm the operation.
If there are important files on the unallocated hard drive, data loss is a significant risk. If you don't have a backup and find that you have unfortunately lost data, you can still use AOMEI Partition Assistant to recover them.
The Best Windows Disk Partition Manager and PC Optimizer
This software helps you to recover lost files from an unallocated hard disk on Windows 11, 10, 8, 7. It can restore more than 200+ types of data, including pictures, documents, videos, emails, and so on. Apart from an unallocated disk, this is also helpful if you encounter virus attack, accident deletion, formatting, corruption, or system crashes that cause data loss.
Follow these simple steps to utilize AOMEI Partition Assistant for data recovery:
Step 1. Begin by installing and launching AOMEI Partition Assistant. On the Main Tab, locate and click "Recover," then select "Recover Data".
Step 2. A window titled "Recover Windows Data" will appear. Identify the partition location from which you wish to initiate data recovery, and then click "Start Scan".
Step 3. Once the scanning process is complete, you'll see a display of all the deleted files, items from the recycle bin, and other missing files. Carefully select the data you want to recover, and then click "Recover".
Step 4. Choose a specific folder path on your PC where you want to save the recovered data.
Step 5. Commence the recovery progress, and upon successful completion of the process, your data will be securely saved to the designated path you selected.
With those available methods, the hard disk unallocated repair will be completed in Windows 11/10/8/7. So don’t feel overwhelmed next time when you encounter such errors. Besides repairing hard disk unallocated errors, AOMEI Partition Assistant easily deals with many other hard disk errors, like USB drive showing 0 bytes, non-system disk errors, etc. Most importantly, its Server edition provides many more features you will need for effective disk/partition management on Windows Server 2008 (R2), 2012 (R2), 2016, 2019, and 2022.
